Description

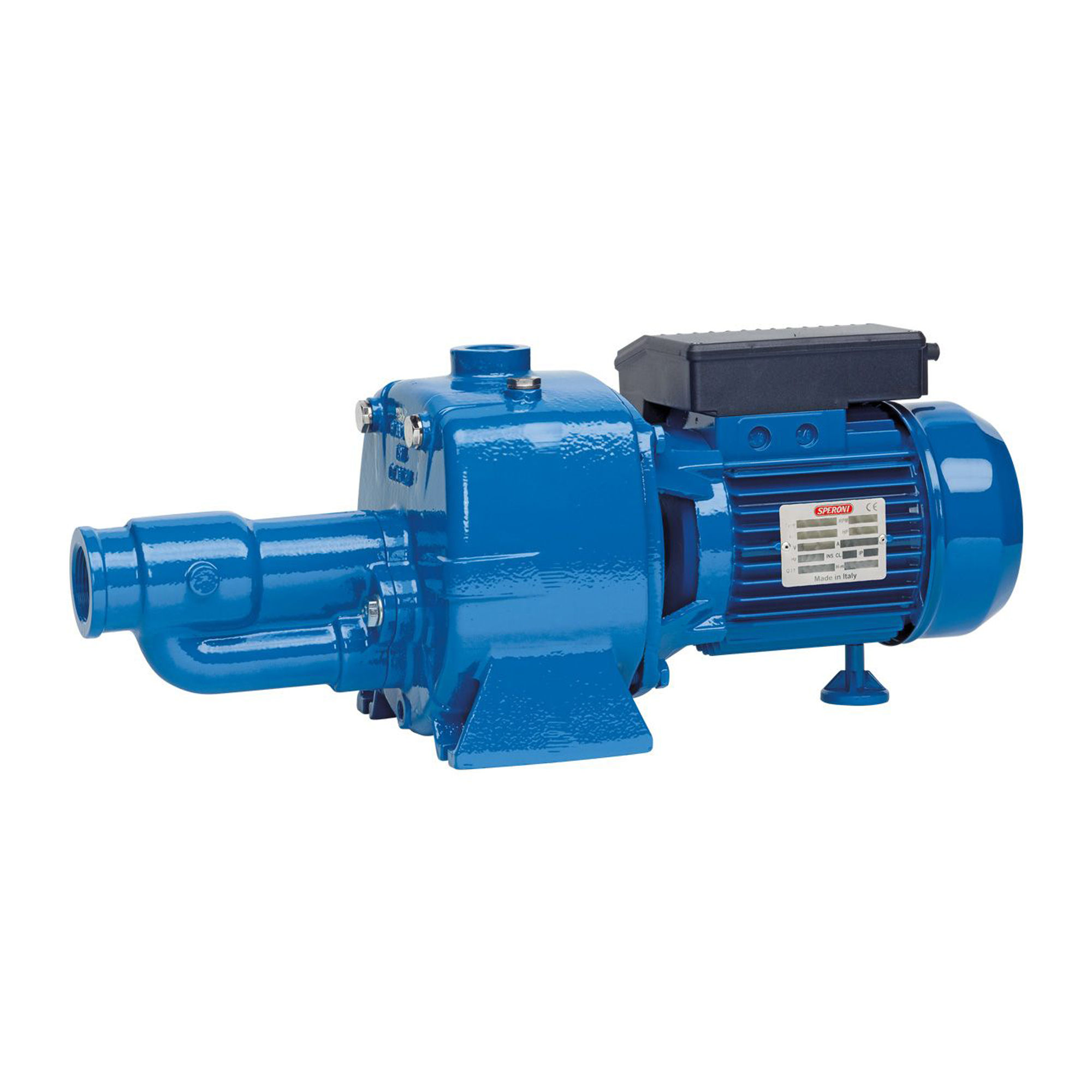

Self-Priming Water Pump – 29 ft Suction Lift – 230V Single-Phase – Durable Cast Iron Construction
Experience reliable and efficient water transfer with this high-performance self-priming water pump, ideal for residential water supply, irrigation, and light commercial applications. Engineered for durability and optimal performance, this pump offers a maximum suction lift of 29 feet, making it perfect for shallow wells, garden irrigation, and water transfer from tanks or cisterns.
Operating Conditions
-
Liquid Temperature: Up to 95°F (35°C) for home use, compliant with EN 60335-2-41
-
Maximum Liquid Temperature: 95°F (35°C) for other applications
-
Ambient Temperature: Up to 104°F (40°C)
-
Maximum Suction Lift: 29 feet (8.8 meters)
Motor Specifications
-
Voltage: Single-phase 230V, 60Hz
-
Motor Type: Two-pole induction motor running at 3450 RPM
-
Insulation Class: F
-
Protection Rating: IP55 – dust-tight and water-resistant
Premium Materials for Long-Lasting Performance
-
Pump Body: Robust cast iron for superior strength and corrosion resistance
-
Motor Support: Cast iron for added durability
-
Impellers & Diffuser: High-quality Norly thermoplastic for corrosion resistance and efficiency
-
Ejector: Cast iron for dependable deep suction performance
-
Shaft and Rotor: Stainless steel AISI 304 for enhanced longevity and corrosion resistance
-
Mechanical Seal: Durable ceramic/graphite/NBR combination for leak-proof operation

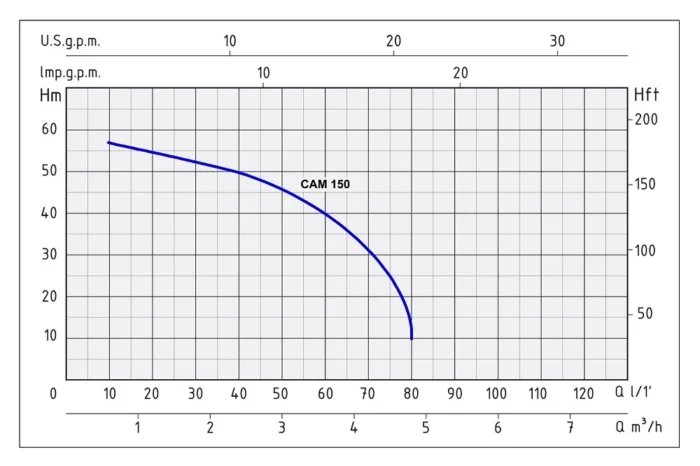

Performance Curve
Dimensions
| Size (inch) | Weight (lbs.) | ||||||||||
| A | B | C | D | E | F | G | H | H1 | DNA | DNM | |
| 4.1 | 10.4 | 23.8 | 8.7 | 6.8 | 0.4 | 8.3 | 9.4 | 4.5 | 1.5 | 1 | 67.8 |
