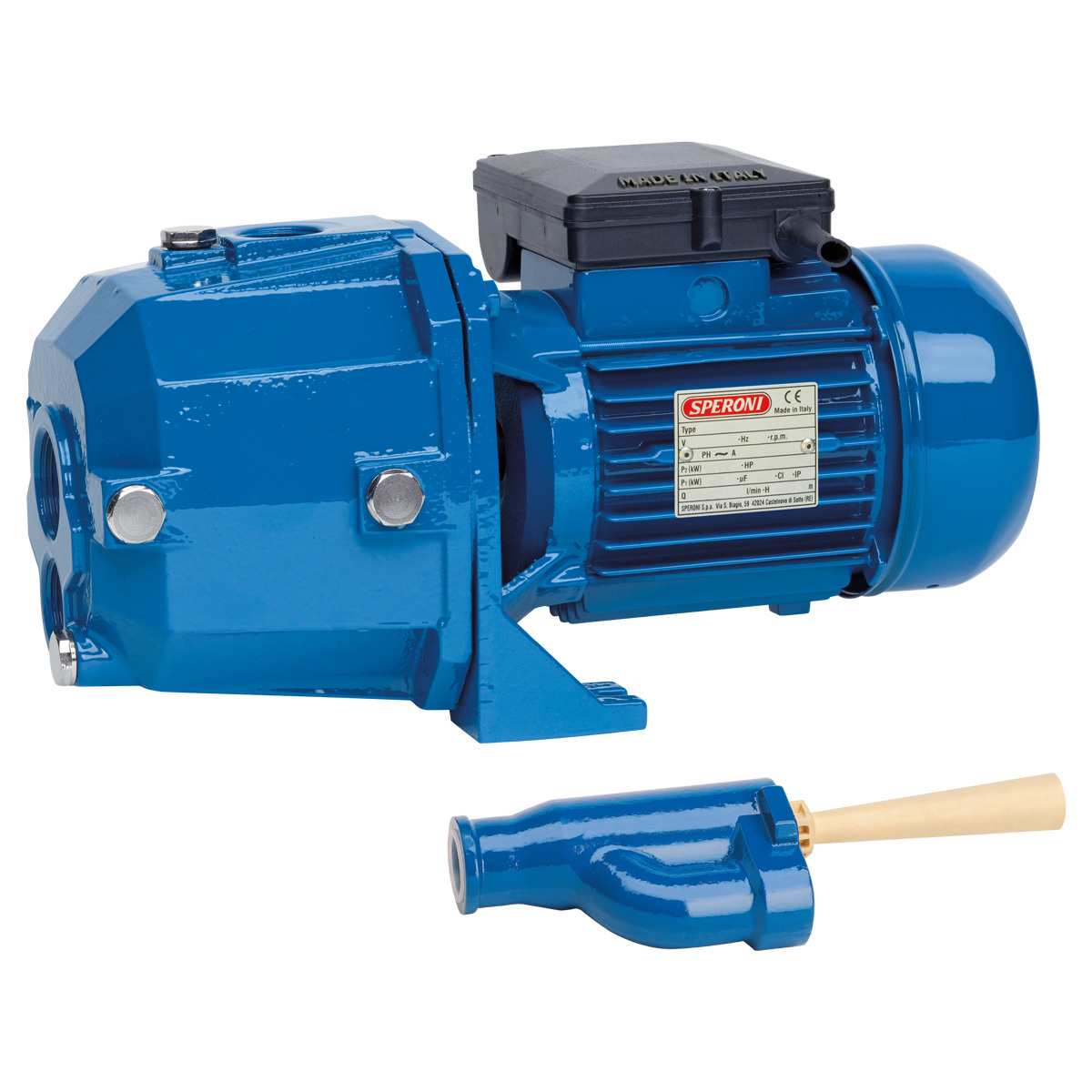

Speroni 1HP Deep Suction Well Jet Self Priming Pump, 110/220V – Model APM 100 (P30)

Description

Key Features

This high-performance external ejector jet pump functions as a centrifugal pump that transforms into a self-priming deep well jet pump when equipped with an ejector at the end of the suction line. The system utilizes a Venturi effect to recirculate water, drawing liquid from deep sources and creating sufficient pressure to deliver it to the surface. Designed for deep suction applications up to 114 ft, the system requires two connected pipes: a delivery pipe to the ejector and a return (suction) pipe. For proper installation, the well diameter must be at least 4 inches.

Operating Conditions

• Maximum liquid temperature: 95°F (in compliance with EN 60335-2-41 for domestic use)

• Maximum ambient temperature: 104°F

• Maximum total suction lift: 114 ft

• Standard ejector model: P30

Motor Specifications

• High-efficiency two-pole induction motor (n = 3450 RPM)

• Insulation Class F

• IP55 protection rating for dust and water resistance

Materials and Build Quality

• Pump body: Durable Cast Iron

• Motor support: Cast Iron

• Impellers and diffuser: Corrosion-resistant Noryl

• Ejector: Cast Iron for long-lasting performance

• Pump shaft: Stainless Steel AISI 304

• Mechanical seal: Ceramic/Graphite/NBR combination for leak protection

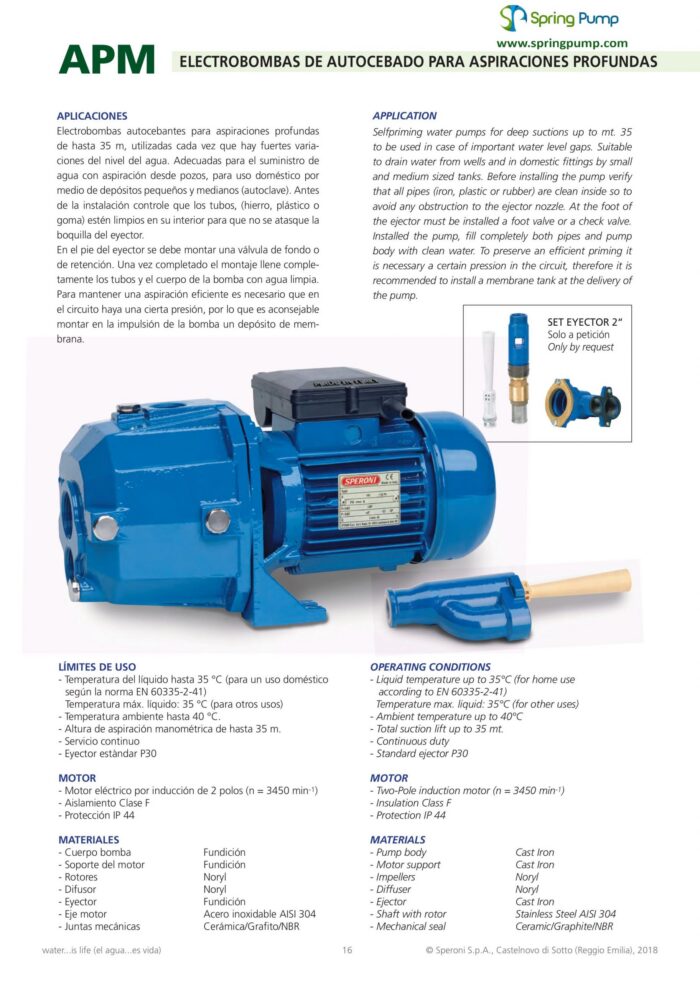

Applications

Ideal for deep well water extraction, this self-priming jet pump is suitable for domestic water supply systems, draining wells and cisterns, small to medium-sized water tanks, and installations with significant vertical water level differences. Before installation, ensure all pipes (plastic, iron, or rubber) are clean to avoid clogging the ejector nozzle. A foot valve or check valve must be installed at the ejector base. After mounting the pump, fill the pump body and both pipes completely with clean water. To maintain effective priming, the system requires stable pressure in the pipeline. We strongly recommend installing a membrane pressure tank at the pump’s delivery outlet.

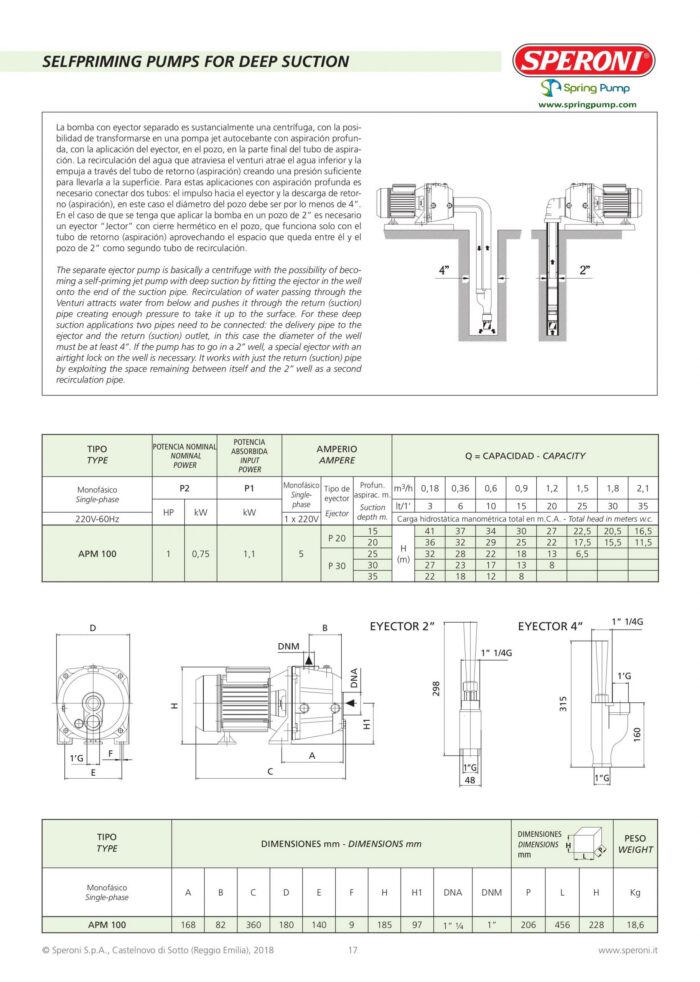

Technical Specifications
