Description
Features
- 98ft. max. total head
- 23ft. max. suction lift
- 4-hr. run time
- Graphite ceramic seals
- WG serial features graphite ceramics seals for extended wear
- The frame protects the pump while offering a convenient tie-down location for transport
- Cast iron volute and impeller reduces case wear, increasing the life of the pump
- Protects the pump by shutting the engine off when low oil is detected
EPA & CARB APPROVED
Download Catalog: Motor. Pumps. PDF
Technical Specifications

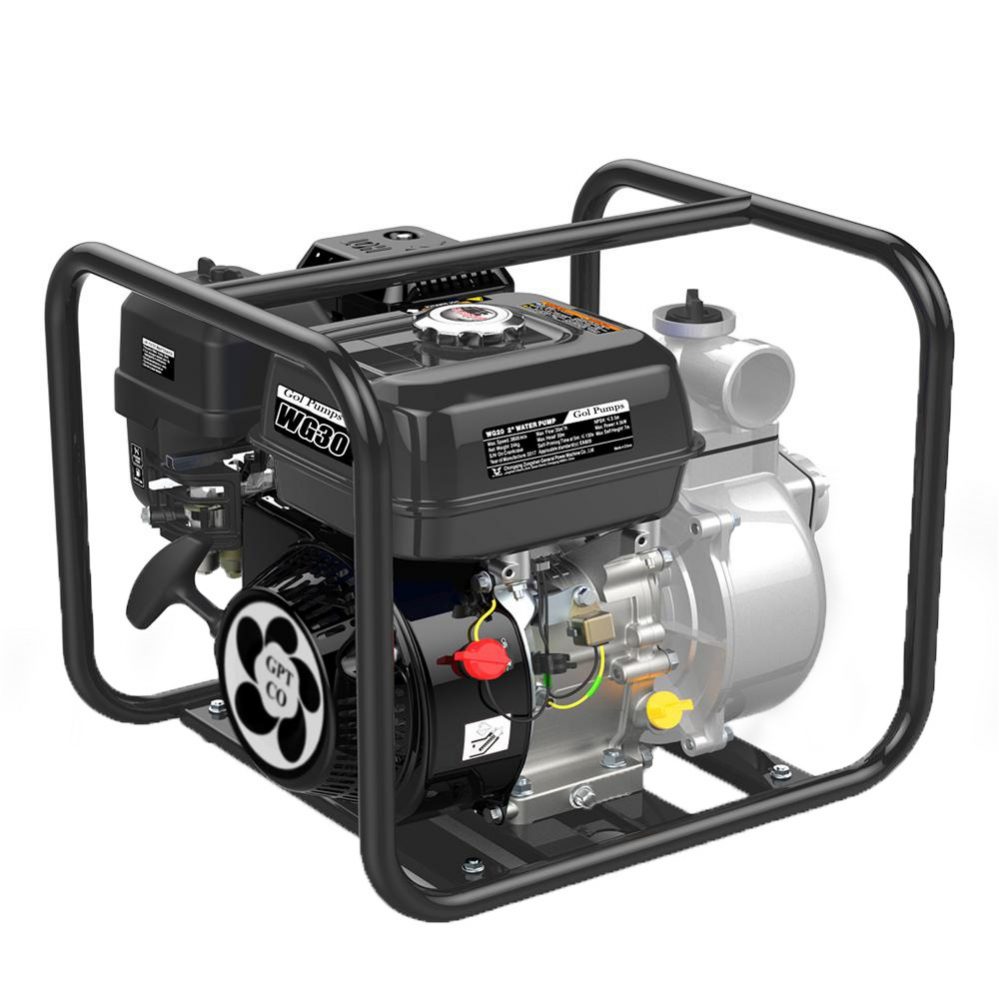

| Item | WG30 Gas Water Pump |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 59.5lbs |
| Port Size (in.) | 3 |
| Flow (GPH) | 14,529 GPH |
| Max. PSI | 43 psi |
| Engine | GB200 |
| Engine Type | 4-stroke gasoline |
| HP | 6HP |
| Engine Displacement (cc) | 196cc |
| Engine Speed (RPM) | 3,800 RPM |
| Suction Port (in.) | 3″ |
| Discharge Port (in.) | 3″ |
| Max. Suction Lift (ft.) | 98ft |
| Max. Total Head (ft.) | 23ft |
| Self-Priming | Yes |
| Seals | Graphite ceramic |
| Impellers | Cast iron |
| Volute | Cast iron |
| Start Type | Recoil |
| Fuel Capacity (gal.) | 0.68 |
| Run Time | 4 Hours |
| Low Oil Shutdown | Yes |
| Dimensions L x W x H (in.) | 20.8″ x 16.3″ x 17.5″ |
| Product Weight (lbs.) | 59.5lbs |
| Certifications and Listings | CE Certified, EPA Approved, No Certifications or Listings |
